Diesel Test Bench Accessories & Attachments

Diesel Test Bench Accessories & Attachments are for diesel fuel injection pump test benches as well as for diesel workshops in general. Backed by latest technology support, these are designed for providing optimum functional usage as well as matching up with the demands of the customers. We can also offer these with customized parameters as demanded by the customers.

Available range:
Digital Tachometer with Stroke Counter and Timer, Backlash Free Flexible Coupling for Test Benches, Bosch Injector Kit For Bosch VE Pumps up to 6 cylinders, Injector kit for Delphi / Lucas DPC Rotary Pumps.

Other than this, we also offer Cummins Injector Assembly / Disassembly Stand (Cummins Part No: 3375084), Universal Ball Joint Vice (360 Deg. Rotatable with Diesel FIP Mounting Plate), Master Injector Kit (For All Inline & Bosch P Type Pumps – Set of 6 Injectors). Further, our expertise also lies in meeting the demands of Timer Travel Gauge (for Bosch VE / Distributor Pumps), Auto Advance Gauge (For Lucas / Delphi DPC Rotary Pumps), Manifold Pressure Compensator (MPC) (For VE / Inline Pumps), High Pressure Pipes with Adapters for Test Benches (Set of Six).

Digital Tachometer with Stroke Counter and Timer

Digital Tachometer with Stroke Counter and Timer finds suitability for all types of diesel fuel injection pump test benches/stands and provide functionality as electromagnetic sensor so as to pick up pulses. Here, we can also supply these with 50 teeth gear supported by tachometer at no extra cost that can be mounted on main shaft of test bench with magnetic sensor placed at distance of 1 mm from gear for picking up pulses. Its working specifications include RPM range of 0 – 9999, timer display in fractions of second and stroke counter of 100 - 1200 strokes that can also be preset in multiples of 100. Further, the power supply works on both 110 +/- 10% V, 60 Hz (USA) or 230 +/- 10 % V, 50 Hz (UK) AC supply and can also be customized as per the requirements.

Note: We  can also supply a 50 teeth gear along with the tachometer at no extra cost which can be mounted on the main shaft of the test bench and the magnetic sensor can be placed at a distance of 1 mm from the gear to pickup pulses OR one can make 50 equidistant holes on the back of the flywheel with a depth of at least 8 mm each and then place the pin of the electromagnetic pickup at a distance of 1mm from the surface of the outer diameter of the 50 teeth gear or the face of the flywheel, whichever is applicable.

RPM Range: 0 - 9999
Timer: Displays time in fractions of second
Stroke Counter: 100 - 1200 strokes - can be preset in multiples of 100

Pressing the Start button on the tachometer operates the solenoid which is fixed to the test tube console on the test bench (When one has to take delivery of pump). Pressing the button energizes the solenoid and then automatically DE energizes it after completion of pre selected strokes. Hence enabling the user to note the output delivery of pump on a test bench.

Power Supply
Works on both 110 +/- 10% V, 60 Hz (USA) or 230 +/- 10 % V, 50 Hz (UK) AC supply. Can be customized according to your requirement - Please leave a message after your purchase as to what you prefer.

Note: 230 / 220 V mains supply tachometers are ready stock and would be shipped out within 2 business days, whereas 110 /120 V mains supply tachometers would be customized hence would be shipped out in 4-5 business days of receiving cleared payment.


Backlash Free Flexible Coupling for Test Benches

Backlash Free Flexible Coupling for Test Benches are available with us in precision designed and constructed finish with expandable jaws of 96 mm Diameter, 12 mm Dog, thus making these compatible enough for working with all types of Diesel fuel injection pump test benches/stands. Further, these also feature flexible, heavy duty coupling that comes with 10 No’s spring steel round strips which allows withstanding of torsional loads of heavy duty fuel injection pumps. With jaws accommodating coupling with 12 mm Dog / Claw, we can also customize these as demanded by the customers.




Yes! I am Interested


Bosch Injector Kit For Bosch VE Pumps up to 6 cylinders

Bosch Injector Kit For Bosch VE Pumps up to 6 cylinders are the diesel injector kits that find suitability for BOSCH Distributor (VE) Pumps of up to six cylinders. These find application for testing as well as calibration of Bosch Distributor (VE) Pumps and are also compatible with all Diesel Fuel Injection Pump Test Stands/ Test benches. Further, for optimum functional support, all injectors also come fitted with genuine Bosch DN 12 SD 12 Nozzles that are preset at 140 BAR opening pressure. The complete kit comprises six Bosch Injectors that come fixed to steel stand with injectors fitted with Bosch DN 12 SD 12 Nozzles that are preset at 140 Bar.


The complete Kit consists of

Yes! I am Interested


Injector kit for Delphi / Lucas DPC Rotary Pumps

Injector kit for Delphi / Lucas DPC Rotary Pumps provide functionality as diesel injector kits and find suitability for testing as well as in calibration of Delphi / Lucas DPC Rotary Pumps that are made available up to six cylinders. The injector kit finds compatibility with all Diesel Fuel Injection Pump Test Stands/ Test benches and for optimum functionality support come fitted with genuine Bosch DN 12 SD 12 Nozzles that are preset at 127 + 3 of bar opening pressure.

Further, these can also be modified so as to achieve results of Hartridge test bench injectors or Delphi injectors with achieved results as per ISO 4008 standards. The kit comprises six Injectors that come fixed to steel stand as well as overflow and output delivery plastic pipes with connector support and de-foaming dampeners that allows elimination of froth/foam from system.
The complete Kit consists of :-
Note: 100 % results guaranteed as per Delphi and Hartridge standards. ( ISO 4008 )


Yes! I am Interested


Cummins Injector Assembly / Disassembly Stand

Cummins Part no: 3375084

Cummins Injector Assembly / Disassembly Stand (Cummins Part No: 3375084) is made available by us with Cummins Part no: 3375084 and Genuine Cummins tool part number: 3375084. Being compatible with all Cummins engine series injectors, these are made available in sizes 5 inch X 8 inch X 14 inch and comes complete with Injector Assembly Stand, ST 1303 - Cup Wrench, PT (Type B), PT (Type C), Flange - 3/8 plunger NH, V - 12, V6-200, V8-265, V8-300, VT8-430; 3375048 - Cup wrench, J , C, V6 - 140, V8 – 185; ST - 1072: Crows foot and 3375102 - Body wrench. The application usage of this fixture is to meet the demands of assembling as well as disassembling of injectors.
Comes complete with :- (As shown in image above)
  1. Injector Assembly Stand
  2. 3375048 -  Cup wrench, J , C, V6 - 140, V8 - 185
  3. ST 1303 - Cup Wrench, PT (Type B), PT (Type C), Flange - 3/8 plunger NH, V - 12, V6-200, V8-265, V8-300, VT8-430
  4. ST - 1072: Crows foot
  5. 3375102 - Body wrench
This fixture is used to assemble / disassemble injectors.

Yes! I am Interested

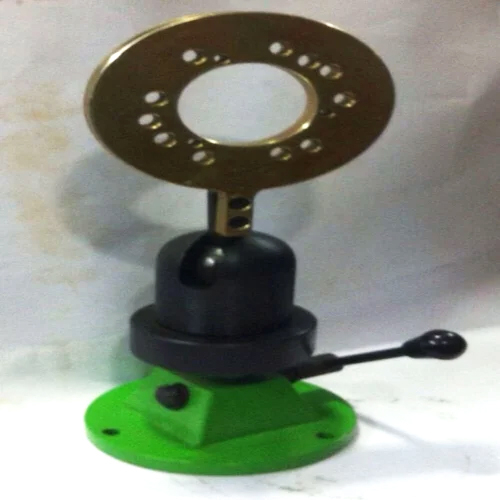

Universal Ball Joint Vise

Model: 360 Deg. Rotatable with Diesel FIP Mounting Plate

Suitable for mounting all kinds of diesel FIP’s including Common Rail PumpsUniversal Ball Joint Vice (360 Deg. Rotatable with Diesel FIP Mounting Plate) find suitability for mounting all types of diesel FIP’s including Common Rail Pumps and features use of Genuine Cummins tool part number: ST - 302 comprising Universal Ball Joint Vise complete with fuel pump mounting plate. Being compatible with all Cummins Engine Series, these are made available in sizes of 7 inch X 8 inch X 10 inch dia for Vise and 1 inch X 6 inch X 11 inch for Mounting plate. Further, these are used for holding all types of turbochargers/air compressors and fuel injection pumps for dis-assembly, assembly as wel as for rebuilding applications. The presence of quality mounting plate with vise also allows for mounting of all types of diesel fuel injection pumps.

Compatible with all Cummins Engine Series.

Size: 7 inch X 8 inch X 10 inch dia.  (Vise) /// 1 inch X 6 inch X 11 inch (Mounting plate)

Weight: 15 lbs or 7 KG (Only Vise), Total weight (With mounting plate) = 21 lbs or 10 KG

ST 302 Ball joint vise is used to hold all kinds of fuel injection pumps, turbochargers or air compressors for dis assembly / assembly / rebuild. A suitable mounting plate must also be used to adapt the unit being rebuilt to the vise.

We provide an excellent quality mounting plate along with the vise which enables mounting of all kinds of diesel fuel injection pumps as described above. (As shown in images 1 and 2).

Note: We can also supply any other mounting plate upon request (Only one plate supplied along with the vise), after purchase let us know the specification and application and we can customize the plate for you.

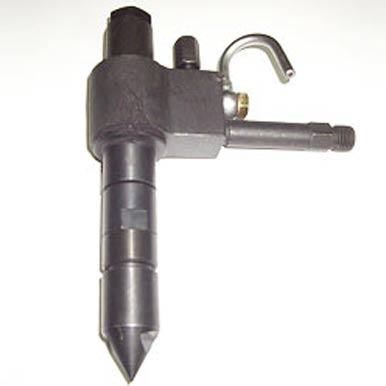

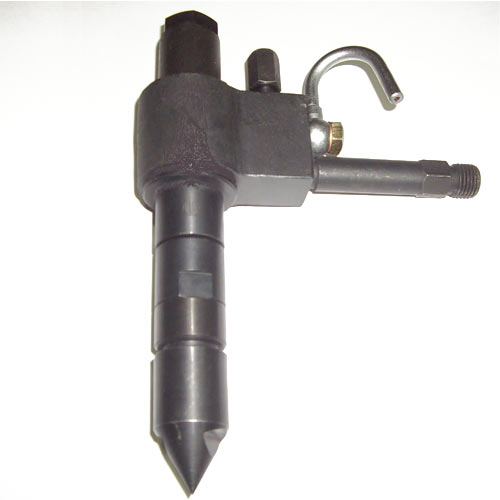

Master Injector Kit for All Inline & Bosch P Type Pumps – SET of 6 injectors

Master Calibration Injectors suitable for all Inline pumps including Bosch P type pumps

Master Injector Kit (For All Inline & Bosch P Type Pumps – Set of 6 Injectors) comprise master calibration injectors that find suitability for all Inline pumps that include Bosch P type pumps. These find usage for testing as well as calibrating Inline / P type pumps and are compatible with complete range of Diesel Fuel Injection Pump Test benches / Test Stands.

Further, for optimum functional support, the injectors also come fitted with genuine Bosch DN 12 SD 12 Nozzles that are preset at 175 Bar +/- 2 Bar opening pressure as well as come with six high pressure pipes. For superior performance, these are constructed using special forged steel that is heat treated as per Bosch standards.

Bosch 12 SD 12 Nozzles Part No : 9430037213

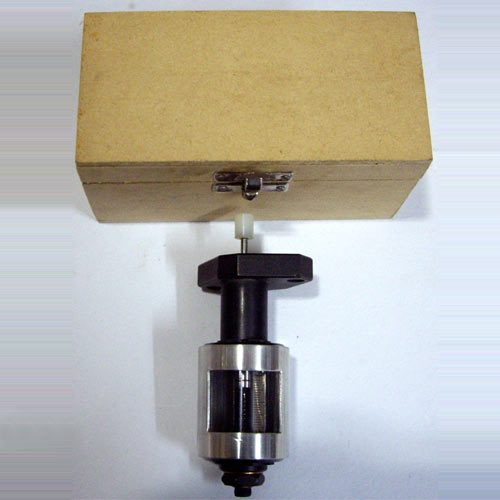

Timer Travel Gauge for Bosch VE / Distributor Pumps

Timer Travel Gauges find suitability for Bosch VE / Distributor Pumps of up to 6 cylinders. Made available in precision designed and constructed finish, these are developed using advanced technology support which makes these deliver optimum functionality support in checking movement of auto advance piston as well as for meeting the demands of adjusting position of Auto advance gauge as per defined test plan of fuel injection pump. Here, the travel is indicated on scale in mm.

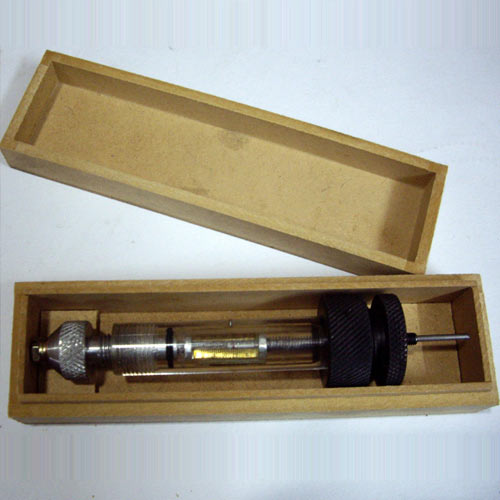

Auto Advance Gauge for Lucas / Delphi DPC Rotary Pumps

Auto Advance Gauges are recognized for their precision designed finish and construction standards that make these highly suitable for meeting the demands of checking movements of advance piston in DPC Rotary Pumps. Featuring dual system of measurement allowing travel to be observed either in mm or in degrees, it comes with gauge support that assists in indicating advance piston in retard position as well. Further, these also allow adjustment of zero at required RPM as per defined test plan of Delphi through turning knob of auto advance gauge in clockwise as well as in anticlockwise direction.

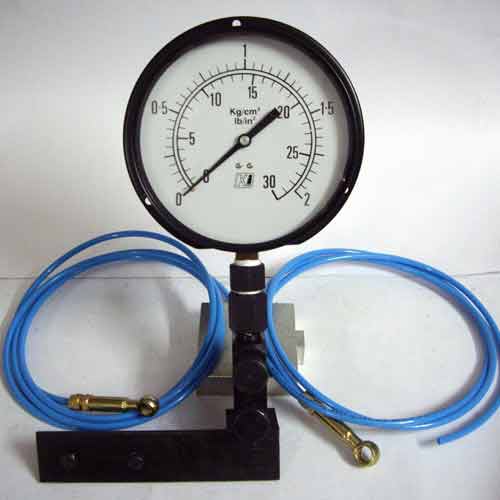

Manifold Pressure Compensator (MPC) for VE / Inline Pumps

Manifold Pressure Compensator ( MPC ) Unit:
Manifold Pressure Compensators features the use of 0 - 30 PSI / 0 - 2 KG/Cm sq. pressure gauge as well as valve and pipe set as per the specific requirements of involved processes. These find application in checking diaphragm leakage of Inline as well as VE distributor pumps of all makes that include Bosch / Denso and others and can also be used for checking movements of diaphragm that is used for increasing output delivery of pumps in case the vehicle is overloaded like when driving uphill. Coming with excellent quality control, we can also offer these in customer specified finishes.

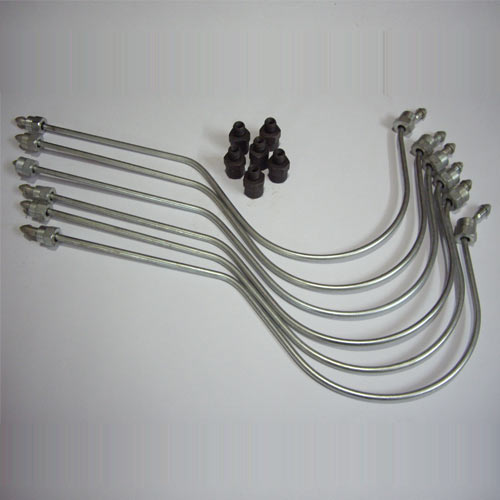

High Pressure Pipes with Adapters for Test Benches

Set of Six

High Pressure Pipes with Adapters for Test Benches comprise a set of six high pressure pipes with adapter support that find suitability for both 'A' type as well as 'B' type diesel fuel injection pumps. Here, the offered pipes are suitable for 'A' type pumps with nuts of ( M 12 X 1.5 ) X (M 14 X 1.5) thread support as well as in dimensions as per international Bosch standards of 6mm X 2mm X 600mm (O.D. X I.D. X L).

The offered pipes are of superior finish quality and come argon welded with hard nipple support that assists in enhancing service life span of the nipples. Further, here these need not be opened from test injector end for testing either type of pumps that safeguards nipples as well as saved from possible damages brought to male thread of test injectors.

Description
Note: Also available in length 450 mm - (6mm X 2mm X 450mm) for Delphi / Bosch distributor pumps ( Leave a message after purchase if you require the 450 mm L pipes)
