Home  »  Product Range  »  Dedicated Common Rail / CRDI Test Benches

Dedicated Common Rail / CRDI Test Benches

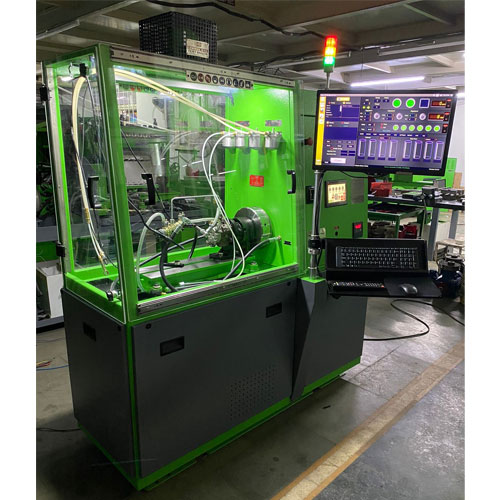

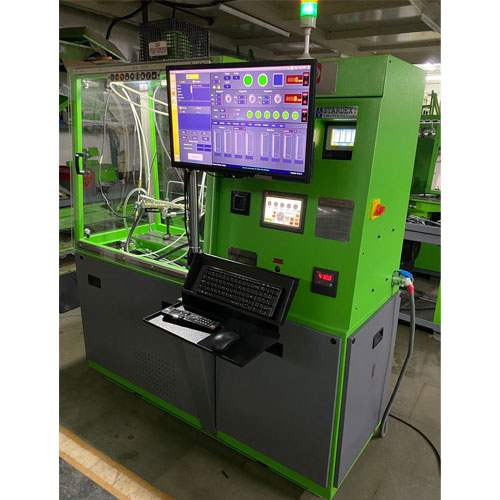

Mini Common Rail Injector Pump and Rail Testing Bench

Model: Mini CRDI 101 C


Complete with all computer hardware, software and CR injector and pump test plans for Bosch, Delphi, Denso and Siemens.

Introduction : Introducing the World's Smallest dedicated Common rail injector, pump and fuel rail testing bench designed for quickly testing all kinds of common rail injectors, pumps and fuel rails of Bosch, Delphi, Denso and Siemens make.

Function / Application :
It can test CR Injectors of both Solenoid and Piezo technology - up to two at a time / simultaneously - It is used to diagnose the Faulty Common rail injector by testing it for its spray pattern, Output delivery to back leakage ratio, Full load delivery, No load delivery, etc. User can also measure the solenoid / Piezo sensor resistance of the injector.

Common Rail Pumps that can be tested include Bosch CP1 / CP2 / CP3, Delphi CRSP, Denso HP3 / HP 4 and Siemens DCP pumps. User can diagnose faulty common rail pumps if they are not developing sufficient pressure / if the solenoid (Fuel metering control valve) on the pump is not functioning well / return flow of the pump is too high. (Bench comes fitted with a Rota meter / Flow meter to measure the return delivery of common rail pumps)

One can also test the pressure sensor and solenoid (fuel rail pressure control valve / DRV / FCA) mounted on the fuel rail for proper function. User can also measure solenoid resistance of the DRV.

The user can vary the pressure developed in the system from 0 – 2000 BAR by controlling the percentage opening of the Pressure control valve / solenoid mounted on the fuel rail fitted on this bench through the CRT 7000 simulator installed on this test bench.

The bench comes fitted with the Common rail injector, pump and fuel rail simulator (CRT 7000) attachment through which user can control the following:-.

  • Pressure in the system (0 - 2000 BAR) by controlling the percentage opening of the fuel rail pressure control valve / solenoid / DRV from 0 - 100 %
  • The injector pulse width (W) - Which determines the volume of delivery per spray.
  • Injector frequency of spray / RPM of engine (N) - Which controls the number of sprays per second.
  • Monitor the fuel rail pressure (Also the system pressure) which is displayed digitally on the CRT 7000 LCD screen and also on the computer software screen , which is read constantly from the pressure sensor mounted on the fuel rail.

Extremely compact and light weight test bench, ideal for diesel workshops who intend to start common rail injector and pump testing. Also ideal for small workshops which have a space constraint to accommodate a bigger test bench. (Refer below for weight and dimensions)

Computer, keyboard and mouse fitted on to the test bench along with the CRT software to control and monitor all CR testing parameters.

User can save and print test results as well by attaching a USB printer to the test bench computer.

Test Bench Features and Specifications :
  • Main Motor (Make - ABB Motors) : 5 HP, Single Phase - 220 V OR Three Phase 380 / 415 V, 50 / 60 HZ (as per customer requirement)
  • Drive (Make - Schneider Electric) : The CRDI 101 is fitted with a Schneider AC Frequency / Electronic drive.
  • Test Bench RPM : The user can set the desired RPM of the test bench anywhere from 0 - 4000 RPM. With electric push buttons to increase / decrease speed of the bench.
  • Injector Delivery & Return Measurement: Injector output delivery and return / back leak is measured in test tubes fitted on to the bench. The bench is also fitted with a digital tachometer, through which the user can control the number of strokes and time for which the reading of Back flow / return vs. output delivery of the CR injector is recorded by the bench. The test then automatically stops once the set number of stroked are reached. The tubes can then be electrically drained via a push button on the bench.
  • CR Pump return measurement : A dedicated Rota meter (Flow meter) is installed on the CRDI 786 to measure the return delivery of all common rail pumps.
  • Pump return, Injector Output delivery / Return pipes and adapters are provided with the bench which connect the CR injector output and return to the measurement test tubes and the CR pump return to the Rota meter.
  • The test bench comes fitted with a Bosch CP1 common rail pump complete with its coupling and a foundation which is suitable for all kinds of common rail pumps. The test bench also comes fitted with a Bosch fuel rail fitted with a rail pressure sensor and fuel rail pressure control valve / solenoid / DRV along with a fuel rail stand. One can control the pressure in the system from 0 – 1800 BAR by controlling the percentage opening of this solenoid / control valve through the CRT 7000 system. Also the pressure in the system is read and monitored through the pressure sensor fitted on the fuel rail and is displayed digitally on the LCD screen of the CRT 7000.
  • The test bench comes complete and fitted with all high pressure pipes, electrical couplers for all kinds of common rail injectors, pumps and fuel rails, and all other necessary accessories to enable trouble free and speedy CR testing.
  • The Common rail testing area is well shielded with an unbreakable transparent acrylic shielding box, which can be lifted up when desired. This is for the safety and protection of the operators when observing spray pattern / performing other injector and pump tests etc. as the pressures involved in CR testing are very high.
  • The bench is fitted with a digital tachometer with stroke counter; to take delivery readings the user can enter the desired number of strokes for which the reading has to be taken.
  • Diesel Fuel Tank Capacity : 15 Liters
  • Dimensions: L X W X H - 86 X 74 X 70 (In centimeters / cm)
  • Net Weight: 160 KG
  • Gross Weight (With Wooden packaging): 260 KG
  • Power Supply: Customizable as per customer's requirement.
  • Comes complete with all Operation manuals, CR Injector and pump test data hard copy and a CD containing various presentations on Common rail technology and repair.

Note : For complete details on the CRT 7000 system please refer to the product listing on our website, please go to the product category Common Rail Injector & Pump Testers (CRDI Testing Kits).

 Click Here for PDF

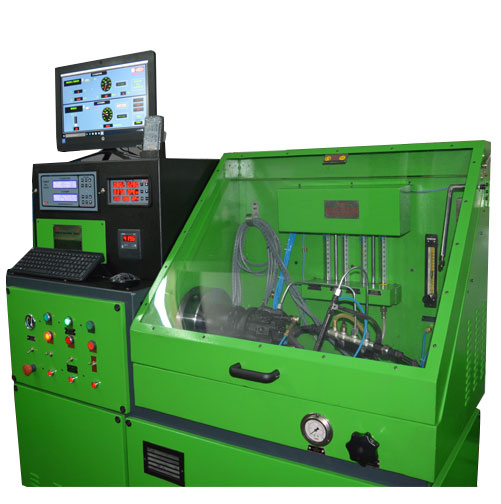

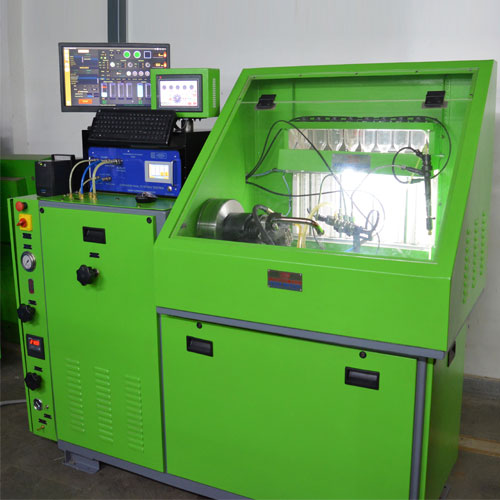

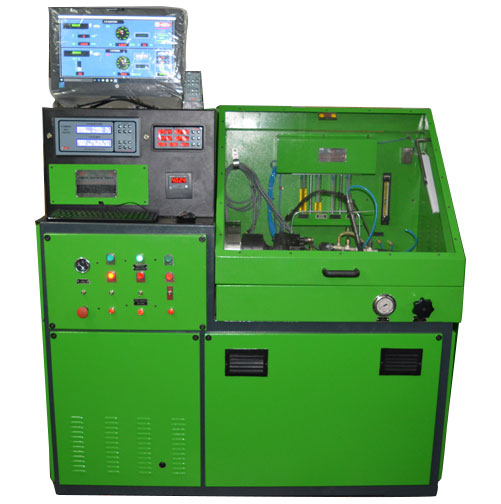

Common Rail Injector and Pump Testing Stand

Model: CRDI 786 C


The CRDI 786 C test bench is a dedicated common rail injector, pump and fuel rail testing bench designed for quickly testing all kinds of common rail injectors, pumps and fuel rails of Bosch, Delphi, Denso and Siemens make (Injectors of both Solenoid and Piezo technology can be tested). User can test up to 2 injectors at a time / simultaneously. This model can also be setup to test 4 CR injectors at a time at some extra cost.

It is used to diagnose the Faulty Common rail injector by testing it for its spray pattern, Output delivery to back leakage ratio, Full load delivery, No load delivery etc.

User can also diagnose faulty common rail pumps if they are not developing sufficient pressure / if the solenoid (Fuel metering control valve) on the pump is not functioning well / return flow of the pump is too high. Common Rail Pumps that can be tested include Bosch CP1 / CP2 / CP3, Delphi CRSP, Denso HP0 / HP3 / HP 4 and the Siemens DCP pumps. User can also measure pump fuel return flow with the flow meter mounted on the test bench.

One can also test the pressure sensor and solenoid (fuel rail pressure control valve / DRV / FCA ) mounted on the fuel rail for proper function.

Test bench comes complete with computer hardware, bench software and all CR injector and pump test plans for Bosch, Delphi, Denso and Siemens. All common rail testing parameters can be controlled from and monitored on the computer software screen.

The user can vary the pressure developed in the system from 0 – 2000 BAR by controlling the percentage opening of the Pressure control valve / solenoid mounted on the fuel rail fitted on this bench through the CRT 7000 simulator installed on this test bench. The bench comes fitted with the Common rail injector, pump and fuel rail simulator (CRT 7000) attachment through which user can also set the injector Pulse width, W (Which controls the volume of delivery per spray) and Frequency of spray (Which is the number of sprays per second) of the CR injector to simulate different testing conditions. The pressure in the system is read from the pressure sensor on the fuel rail constantly and is displayed digitally on the CRT 7000 LCD screen.

User can save and print CR test results by attaching a USB printer to the test bench.

Test Bench Specifications and Features :
  • Main Motor (Make – ABB Motors) : 5 HP, Single Phase – 220 V OR 110 V (According to customer requirement) OR Three Phase 415 V, 50 / 60 HZ or as per customers requirement.
  • Drive (Make – Schneider Electric) : The CRDI 786 is fitted with a Schneider AC Frequency / Electronic drive.
  • Test Bench RPM : The user can set the desired RPM of the test bench anywhere from 0 – 6000 RPM. With electric push buttons to increase / decrease speed of the bench.
  • Injector Delivery & Return Measurement : Injector output delivery and return / back leak is measured in test tubes fitted on to the bench. The bench is also fitted with a digital tachometer, through which the user can control the number of strokes and time for which the reading of Back flow / return vs. output delivery of the CR injector is recorded by the bench. The test then automatically stops once the set number of stroked are reached. The tubes can then be electrically drained via a push button on the bench.
  • CR Pump return measurement : A dedicated Rota meter (Flow meter) is installed on the CRDI 786 to measure the return delivery of all common rail pumps.
  • Pump return, Injector Output delivery / Return pipes and adapters are provided with the bench which connect the CR injector output and return to the measurement test tubes and the CR pump return to the Rota meter.
  • The test bench comes fitted with a Bosch CP1 common rail pump complete with its coupling and a foundation which is suitable for all kinds of common rail pumps. The test bench is also fitted with a Bosch fuel rail fitted with a rail pressure sensor and fuel rail pressure control valve / solenoid. One can control the pressure in the system from 0 – 1800 BAR by controlling the percentage opening of this solenoid / control valve through the CRT 7000 system. Also the pressure in the system is read and monitored through the pressure sensor fitted on the fuel rail and is displayed digitally on the LCD screen of the CRT 7000.
  • The test bench comes complete and fitted with all high pressure pipes, electrical couplers for all kinds of common rail injectors, pumps and fuel rails, and all other necessary accessories to enable trouble free and speedy CR testing.
  • The Common rail testing area is well shielded with an unbreakable transparent acrylic shielding box, which can be lifted up when desired. This is for the safety and protection of the operators when observing spray pattern / performing other injector and pump tests etc. as the pressures involved in CR testing are very high.
  • The bench is fitted with a digital tachometer with stroke counter; to take delivery readings the user can enter the desired number of strokes for which the reading has to be taken.
  • Diesel Fuel Tank Capacity : 35 Liters
  • Dimensions : L X W X H - 145 X 55 X 160 (In centimeters / cm)
  • Net Weight : 300 KG
  • Gross Weight (With Wooden packaging): 450 KG
  • Power Supply : Customizable as per customer’s requirement.
  • Comes complete with all Operation manuals, CR Injector and pump test data hard copy and a CD containing an excellent presentation on Common rail technology.



Common Rail Injector Testing Bench

Model: CRDI Mini 786

The Mini CRDI 786 test bench is a dedicated common rail injector testing bench designed for quickly testing all kinds of common rail injectors of Bosch, Delphi, Denso and Siemens make (Both of Solenoid and Piezo technology). It is used to diagnose the Faulty Common rail injector by testing it for its spray pattern, Output delivery to back leakage ratio, Full load delivery, No load delivery etc. The user can vary the pressure developed in the system from 0 - 1800 BAR by controlling the percentage opening of the Pressure control valve / solenoid mounted on the fuel rail fitted on this bench. The bench comes fitted with the Common rail injector and pump simulator (CRT 5000) attachment through which user can also set the injector Pulse width, W (Which controls the volume of delivery per spray) and Frequency of spray (Which is the number of sprays per second) of the CR injector to simulate different testing conditions. (For complete details on the CRT 7000 system please refer below to the section - CRT 7000 simulator details.

Test Bench Specifications and Features :
  • Main Motor : 3 HP, Single Phase - 220 V OR 110 V (According to customer requirement)
  • Delivery Measurement : Injector output delivery and return / back leak is measured in test tubes fitted on to the bench. The bench is also fitted with a digital timer, to take readings the user can enter the desired time for which the reading has to be taken and then push a green push button provided on top of the timer to start delivery and back leak measurement from injector. The test then automatically stops once the set time expires. The tubes can then be electrically drained via a push button on the bench.
  • Injector Output delivery and Return pipes and adapters are provided with the bench which connect the CR injector output and return to the measurement test tubes.
  • The test bench comes fitted with a Bosch CP1 common rail pump which is coupled to the motor and is responsible for fuel supply. The test bench is also fitted with a Bosch fuel rail fitted with a rail pressure sensor and fuel rail pressure control valve / solenoid. One can control the pressure in the system from 0 - 1800 BAR by controlling the percentage opening of this solenoid / control valve through the CRT 5000 system. Also the pressure in the system is read and monitored through the pressure sensor fitted on the fuel rail and is displayed digitally on the LCD screen of the CRT 7000.
  • The test bench comes complete and fitted with all high pressure pipes, electrical couplers for all kinds of common rail injectors, and all necessary accessories to enable trouble free and speedy CR injector testing.
  • 180 Degree rotating and swiveling injector console; the CR injector can be mounted and fixed in any user desired position (from 0 to 180 degree).
  • The injector test area is well shielded with an unbreakable transparent acrylic shielding box, which can be lifted up when desired. This is for the safety and protection of the operators when observing spray pattern / performing other injector tests etc. as the pressures involved in CR testing are very high.
  • The bench is fitted with a digital timer; to take delivery readings the user can enter the desired time for which the reading has to be taken and then push a green push button provided on top of the timer to start delivery and back leak measurement from the CR injector. The test then automatically stops once the set time expires.
  • Diesel Fuel Tank Capacity on the bench is 5 liters. The fuel tank can be filled from outside without opening the bench.
  • Dimensions : L X W X H - 76 X 62 X 68 (In centimeters / cm)
  • Net Weight : 80 KG
  • Gross Weight (With Wooden packaging): 100 - 110 KG
  • Power Supply : Customizable as per customer’s requirement
  • Comes complete with all Operation manuals, CR Injector and pump test data hard copy and a CD containing an excellent presentation on Common rail technology.


CRT 7000 Simulator Details:-
The bench comes fitted with the CRT 7000 simulator for driving common rail injectors, pumps and fuel rails, the complete details of which are provided below:-

Features:
  • It provides driving signals to the injector solenoid and can be used to test a CR injector for its delivery, back leak, spray pattern, chattering etc. One can easily measure the return to output delivery ratio on a test bench using the CRT 7000.
  • One can vary the pulse width of the injector (W) (in mS – milli seconds), which determines the time for which the injector nozzle opens to spray, hence determining the volume of delivery per spray. More the set pulse width, higher will be the output delivery.
  • Also one can vary the engine RPM (N) which in turn determines the frequency of spray from the injector (Number of times an injector sprays per second). Higher the set engine RPM higher will be the frequency of spray.
  • It provides driving signals to the fuel metering control valve / Solenoid on the CR pump, and can energize it from 0 % to 100 %, i.e. fully closed (zero output delivery) to fully open (maximum output delivery). The fuel metering control valve on the pump regulates the fuel intake volume to the CR pump and hence also determines the output volume.
  • The CRT also provides driving signals to the fuel rail pressure control valve / solenoid which is used to increase / decrease rail pressure by operating a drain / return mechanism to drain out fuel from the fuel rail. As in the case of pump solenoid, this can also be energized between 0 – 100 %. The Mini CRDI 786 bench is fitted with a Bosch fuel rail with a rail pressure control valve / solenoid which is controlled through the CRT 7000 unit on the test bench.
  • Monitors and displays the rail pressure digitally on the LCD display, and provides automatic cut off of fuel supply once rail pressure exceeds 1600 BAR (Overpressure protection). The fuel rail on the bench has a pressure sensor mounted on it and the pressure in the system is read through this pressure sensor and is displayed digitally on the screen of the CRT 7000 unit mounted on the Mini CRDI 786 test bench.
  • Hence the CRT 7000 is also used to test the proper operation of the fuel metering solenoid on pump, fuel rail pressure control valve / solenoid on rail and the fuel rail pressure sensor.


Therefore, the CRT 7000 is nothing but an ECU / ECM simulator - it simulates the working of an ECU / ECM in vehicles to provide precise driving signals to the various components of the common rail system, i.e., the CR pump, Fuel rail and the CR injectors. Also like the ECU it receives feedback from the pressure sensor on the rail and displays the rail pressure digitally.
