Home  »  Product Range  »  8 Cylinders Computerized Multipurpose Diesel Fuel Injection Pump Test Bench

8 Cylinders Computerized Multipurpose Diesel Fuel Injection Pump Test Bench

Model: MPC 800


Application :
Computerized 8 cylinder pump test bench capable of accurately testing diesel fuel injection pumps starting right from 2 cylinders up to 8 cylinders, it can test all kinds of diesel fuel injection pumps and injectors listed below:-
  1. Bosch Distributor V.E. Pumps.
  2. Inline pumps of all types including ‘P’ type pumps.
  3. All types of Lucas / Delphi Rotary pumps including ‘DPC’
  4. Common rail pumps and injectors of all makes.
  5. EDC / Electronic VE pumps.

Features and Specifications :
  • No. of cylinders : 8
  • Drive : AC Frequency / Electronic drive
  • Main Motor : 7.5 HP / 5.6 KW
  • RPM : Variable from 0 – 5000 RPM
  • Pressure Gauges : Digital and Analog
  • Fuel Supply Motor : 1.5 HP
  • CE Certified design of Digital LCD display (Hewlett Packard), electronics Developed in collaboration with "Godrej India" electronics team.
  • Fly wheel with calculated moment of inertia fitted with Bosch Flexible Coupling.
  • Center height = 125 mm.
  • Computer display of all parameters. Results and can be saved and printed.
  • Two modes of testing available for diesel pumps: Automatic and Manual.
  • Oil collected in test tubes can be electronically / automatically drained through the computer.
  • All pressure gauge outputs displayed digitally on the computer screen.
  • Heater and chiller system precisely controls the preset fuel temperature with auto cutoff system which maintains the temperature at 40 +/- 1 degree Celsius.
  • Stroke counting and timing facility operated through the test bench computer software.
  • Return flow of Rotary, VE and Common rail pumps is measured digitally in cc / min and is displayed on the test bench computer.
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. (For list of standard and special accessories please refer the Test Bench Data word file attached here)
  • Power Supply: Customizable according to Customer requirement.
  • Color: Choice of two colors available:-

    a. Green with black trim (As in picture above)
    b. Blue with White trim


 Click Here for PDF


8 Cylinder Multipurpose Diesel Fuel Injection Pump

Model:DD 800 CR


Application :
The DD 800 CR is a 2 in 1 time saving multipurpose test bench capable of accurately testing all types of diesel fuel injection pumps and injectors. Starting right from 2 cylinder pumps up to 8 cylinders, it can test all kinds of diesel fuel injection pumps as well as injectors listed below:-
  1.  Common rail diesel / CRDI Injectors, Pumps and Fuel rails of Bosch, Delphi, Denso and Siemens make. (Injectors both of solenoid and Piezo technology can be tested)
  2. EDC / Electronic VE pumps such as Bosch VP Series - VP 36, VP 37 etc.
  3. Bosch Distributor V.E. Pumps and other rotary pumps.
  4.   Inline pumps of all types including 'P' type pumps.
  5.   All types of Lucas / Delphi Rotary pumps including 'DPC'.


Note: The DD 800 CR has two independent work stations each with its own independent motor and drive so that 2 operators can work on the bench simultaneously.

- One side comes with a 7.5 HP main motor and electronic drive and is used for testing conventional diesel pumps like inline, rotary etc. as well as EDC / electronic VE pumps up to 8 cylinders.

The other side is dedicated for use in testing of Common rail injectors and pumps of all makes and comes with a 5 HP main motor, electronic drive and properly shielded work area for operator safety.

Test Bench Specifications:-
  • No. of cylinders : 8
  • Drive : AC Frequency / Electronic drive (Make: Schneider Electric)
  • Main Motor : 7.5 HP on one side and 5 HP on the other (Make: ABB)
  • RPM : Variable from 0 – 5000 RPM
  • Pressure Gauges : Digital and Analog
  • Fuel Supply Motor : 1 HP
  • Test bench comes fitted with the CRTK 5000 test bench kit for common rail testing. The kit includes 1. Bosch CP1 common rail pump along with a foundation suitable for all types of Common rail pumps and a suitable coupling, 2. Bosch fuel rail fitted with a pressure sensor and fuel rail pressure control valve / solenoid / DRV, 3. CRT 5000 electronic simulator for driving common rail injectors, pumps and fuel rail, 4. Allhigh pressure pipes, rail return pipe, injector output delivery and return adaptors, all electrical couplers for different kinds of common rail injectors / pumps of Bosch, Delphi, Denso and Siemens make, and all other necessary accessories for Common rail testing.
  • Test Bench also comes fitted with the EDC 7000 Simulator for driving and testing of Electronic diesel control / EDC electronic VE pumps such as the Bosch VP series pumps – VP 36, VP 37etc.
  • Pressure developed in the system while Common rail testing can be regulated from 0 – 2000 BAR, as the user desires.
  • The testing area of the test bench for Common rail testing is well shielded with an unbreakable transparent acrylic shielding, which can be opened / closed when desired. This is for the safety and protection of the operators when observing spray pattern / performing other CR injector and pump tests etc. as the pressures involved in CR testing are very high.
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. The standard accessories supplied free of cost along with the bench are:-


 Click Here for PDF

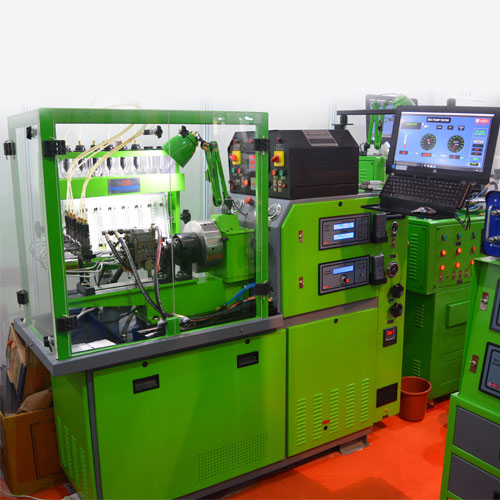

Multipurpose Common Rail and EDC Pump Test Bench

Model: CRDI 800 EDC


Applications:

CRDI 800 EDC is a multi purpose test bench capable of accurately testing all types of diesel fuel injection pumps and injectors. Starting right from 2 cylinder pumps up to 12 cylinders, it can test all kinds of diesel fuel injection pumps as well as injectors listed below:-

  • Common rail diesel / CRDI Injectors, Pumps and Fuel rails of Bosch, Delphi, Denso and Siemens make. (Injectors both of solenoid and Piezo technology can be tested)
  • EDC / Electronic VE pumps such as Bosch VP Series – VP 36, VP 37 etc.
  • Bosch Distributor V.E. Pumps.
  • Inline pumps of all types including 'P' type pumps.
  • All types of Lucas / Delphi Rotary pumps including 'DPC'.


Features and Specifications:
  • No. of cylinders:8
  • Drive: AC Frequency / Electronic drive (Make: Schneider Electric)
  • Main Motor: 7.5 HP / 10 HP (Make: ABB Motors)
  • RPM: Variable from 0 - 5000 RPM.
  • Pressure Gauges: Digital and Analog
  • Fuel Supply Motor: 1 HP
  • Test bench comes fitted with the CRTK 5000 test bench kit for common rail testing. The kit includes:
  • a. Bosch CP1 common rail pump along with a foundation suitable for all types of Common rail pumps and a suitable coupling. b. Bosch fuel rail fitted with a pressure sensor and fuel rail pressure control valve / solenoid / DRV. c. CRT 5000 electronic simulator for driving common rail injectors, pumps and fuel rail. d. All high pressure pipes, rail return pipe, injector output delivery and return adaptors, all electrical couplers for different kinds of common rail injectors / pumps of Bosch, Delphi, Denso and Siemens make, and all other necessary accessories for Common rail testing. (For more information on the CRTK 5000 please see the complete listing of the product on our website in category: 'Common Rail / CRDI Injector & Pump Testers')
  • Test Bench also comes fitted with the EDC 7000 Simulator for driving and testing of Electronic diesel control / EDC electronic VE pumps such as the Bosch VP series pumps – VP 36, VP 37 etc.
  • Pressure developed in the system while Common rail testing can be regulated from 0 – 1800 BAR, as the user desires.
  • The main testing area of the test bench is well shielded with an unbreakable transparent acrylic shielding, which can be opened / closed when desired. This is for the safety and protection of the operators when observing spray pattern / performing other CR injector and pump tests etc. as the pressures involved in CR testing are very high.
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. (For list of standard and special accessories please refer the Test Bench Data PDF file attached below)
  • Power Supply: Customizable according to Customer requirement.
  • Color: Choice of two colors available:-
  • a.Green with black trim (As in picture above)
    b. Blue with White trim

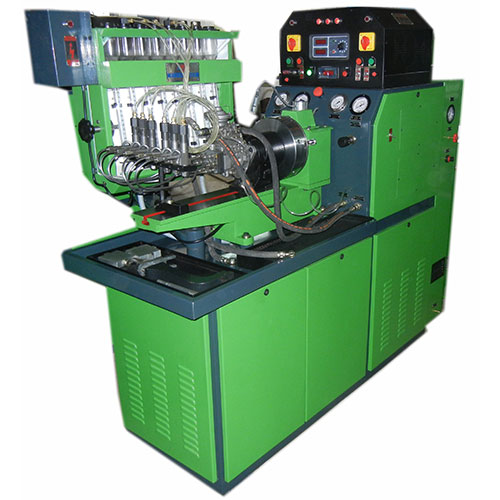

8 Cylinder Diesel Fuel Injection Pump Test Stands

Diesel Fuel Injection Pump Test Stand

Model: NMT 800 E


Application :
Capable of accurately testing and calibrating diesel fuel injection pumps starting right from 2 cylinders up to 8 cylinders, it can test all kinds of diesel fuel injection pumps listed below :
  1. Bosch Distributor V.E. Pumps.
  2. Inline pumps of all types including ‘P’ type pumps.
  3. All types of Lucas / Delphi Rotary pumps including ‘DPC'.





Features and Specifications :
  • No. of cylinders : 8
  • Drive : AC Frequency / Electronic drive (Same bench can be made with Variator or Hydraulic drive upon customer request)
  • Main Motor : 7.5 or 10 HP (as per customer requirement).
  • RPM : Variable from 0 – 5000 RPM
  • Pressure Gauges : Digital and Analog.
  • Fuel Supply Motor : 1 HP
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. (For list of standard and special accessories please refer the Test Bench Data PDF file attached here)
  • Power Supply : Customizable according to Customer requirement
  • Color : Choice of two colors available :
    • Green with black trim (As shown in the first picture)
    • Blue with White trim (As shown in the second picture)

 Click Here for PDF

Yes! I am Interested


Multipurpose Common Rail Test Bench

Model: CRDI 800 E


Application :
The CRDI 800 E is a multipurpose test bench capable of accurately testing all types of diesel fuel injection pumps and injectors including Common rail / CRDI pumps and injectors. Starting right from 2 cylinder pumps up to 8 cylinders, it can test all kinds of diesel fuel injection pumps as well as injectors listed below :
  1. Common rail diesel / CRDI Injectors, Pumps and Fuel rails of Bosch, Delphi, Denso and Siemens make. (Injectors both of solenoid and Piezo technology can be tested)
  2. Bosch Distributor V.E. Pumps
  3. Inline pumps of all types including ‘P’ type pumps.
  4. All types of Lucas / Delphi Rotary pumps including ‘DPC’


Features and Specifications :
  • No. of cylinders : 8
  • Drive : AC Frequency / Electronic drive (Bench can be made with Variator or Hydraulic drive as well upon customer request)
  • Main Motor : 7.5 HP / 10 HP (as per customer requirement)
  • RPM : Variable from 0 – 5000 RPM
  • Pressure Gauges : Digital and Analog.
  • Fuel Supply Motor : 1 HP.
  • Test bench comes fitted with the CRTK 5000 test bench kit for common rail testing. The kit includes 1. Bosch CP1 common rail pump along with a foundation suitable for all types of Common rail pumps and a suitable coupling, 2. Bosch fuel rail fitted with a pressure sensor and fuel rail pressure control valve / solenoid / DRV, 3. CRT 5000 electronic simulator for driving common rail injectors, pumps and fuel rail, 4. All high pressure pipes, rail return pipe, injector output delivery and return adaptors, all electrical couplers for different kinds of common rail injectors / pumps of Bosch, Delphi, Denso and Siemens make, and all other necessary accessories for Common rail testing. (For more information on the CRTK 5000 please see the complete listing of the product on our website in category: “Common Rail / CRDI Injector & Pump Testers”
  • Pressure developed in the system while Common rail testing can be regulated from 0 – 1800 BAR, as the user desires.
  • The main testing area of the test bench is well shielded with an unbreakable transparent acrylic shielding, which can be opened / closed when desired. This is for the safety and protection of the operators when observing spray pattern / performing other CR injector and pump tests etc. as the pressures involved in CR testing are very high.
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. (For list of standard and special accessories please refer the Test Bench Data PDF file attached below)
  • Power Supply : Customizable according to Customer requirement.
  • Color : Choice of two colors available :
    • Blue with White trim (As in picture above)
    • Green with black trim

 Click Here for PDF


Diesel Fuel Injector Pump Test Bench

Model: HT 800 E


Application :
Capable of accurately testing and calibrating diesel fuel injection pumps starting right from 2 cylinders up to 8 cylinders, it can test all kinds of diesel fuel injection pumps listed below :
  1. Bosch Distributor V.E. Pumps
  2. Inline pumps of all types including ‘P’ type pumps.
  3. All types of Lucas / Delphi Rotary pumps including ‘DPC’

Features and Specifications :
  • No. of cylinders : 8
  • Drive : AC Frequency / Electronic drive (Same bench can be made with Variator or Hydraulic drive upon customer request)
  • Main Motor : 7.5 or 10 HP (as per customer requirement).
  • RPM : Variable from 0 – 5000 RPM
  • Pressure Gauges : Digital and Analog.
  • Fuel Supply Motor : 1 HP
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. (For list of standard and special accessories please refer the Test Bench Data PDF file attached here)
  • Power Supply : Customizable according to Customer requirement.
  • Color : Choice of two colors available :
    • Green with black trim (As in picture above)
    • Blue with White trim

Product Details :
BrandIndian Machine


 Click Here for PDF

Yes! I am Interested


Diesel Fuel Injector Pump Test Stand

Model: NMT 800 V


Application :
Capable of accurately testing and calibrating diesel fuel injection pumps starting right from 2 cylinders up to 8 cylinders, it can test all kinds of diesel fuel injection pumps listed below :
  1. Bosch Distributor V.E. Pumps.
  2. Inline pumps of all types including ‘P’ type pumps.
  3. All types of Lucas / Delphi Rotary pumps including ‘DPC’.

Features and Specifications :
  • No. of cylinders : 8
  • Drive : Available in Variator or Hydraulic Drive (as per customer requirement).
  • Main Motor : 5 or 7.5 HP Dual speed (as per customer request)
  • RPM :
    • Bench with Variator Drive : 50 – 6000 RPM
    • Bench with Hydraulic Drive : 0 – 900 RPM or 0 – 3000 RP
  • Pressure Gauges : Digital and Analog
  • Fuel Supply Motor : 1 HP
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. (For list of standard and special accessories please refer the Test Bench Data PDF file attached here)
  • Power Supply : Customizable according to Customer requirement.
  • Color : Choice of two colors available :
    • Green with black trim (As in picture above)
    • Blue with White trim

 Click Here for PDF

Yes! I am Interested


6 Cylinder Multipurpose Common Rail Test Stand

Model: CRDI 600


Application :
The CRDI 600 E is a multipurpose test bench capable of accurately testing and calibrating all types of diesel fuel injection pumps including Common rail / CRDI pumps and injectors up to 6 cylinders. Starting right from 2 cylinder pumps up to 6 cylinders, it can test the following :
  1. Common rail diesel / CRDI Injectors, Pumps and Fuel rails of Bosch, Delphi, Denso and Siemens make. (Injectors both of solenoid and Piezo technology can be tested)
  2. Bosch Distributor V.E. Pumps.
  3. Inline pumps of all types including ‘P’ type pumps.
  4. All types of Lucas / Delphi Rotary pumps including ‘DPC’

Features and Specifications :
  • No. of cylinders : 6
  • Drive : AC Frequency / Electronic drive
  • Main Motor : 7.5 HP
  • RPM : Variable from 0 – 5000 RPM
  • Pressure Gauges : Digital and Analog
  • Fuel Supply Motor : 1 HP
  • Test bench comes fitted with the CRTK 5000 test bench kit for common rail testing. The kit includes 1. Bosch CP1 common rail pump along with a foundation suitable for all types of Common rail pumps and a suitable coupling, 2. Bosch fuel rail fitted with a pressure sensor and fuel rail pressure control valve / solenoid / DRV, 3. CRT 5000 electronic simulator for driving common rail injectors, pumps and fuel rail, 4. All high pressure pipes, rail return pipe, injector output delivery and return adaptors, all electrical couplers for different kinds of common rail injectors / pumps of Bosch, Delphi, Denso and Siemens make, and all other necessary accessories for Common rail testing. (For more information on the CRTK 5000 please see the complete listing of the product on our website in category: “Common Rail / CRDI Injector & Pump Testers”)
  • Pressure developed in the system while Common rail testing can be regulated from 0 – 1800 BAR, as the user desires
  • The main testing area of the test bench is well shielded with an unbreakable transparent acrylic shielding, which can be opened / closed when desired. This is for the safety and protection of the operators when observing spray pattern / performing other CR injector and pump tests etc. as the pressures involved in CR testing are very high.
  • Comes fitted with all pressure gauges and necessary standard accessories. Also some special accessories are available at an extra cost. (For list of standard and special accessories please refer the Test Bench Data PDF file attached below)
  • Power Supply : Customizable according to Customer requirement
  • Color : Choice of two colors available :
    • Blue with White trim (As in picture above)
    • Green with black trim


 Click Here for PDF
